Zatobox Plug
Zatobox Plug
The Zatobox Plug is an intelligent switch designed to connect seamlessly with the Zatobox One. It enables monitoring of device energy consumption and management of energy flows.
Product configuration

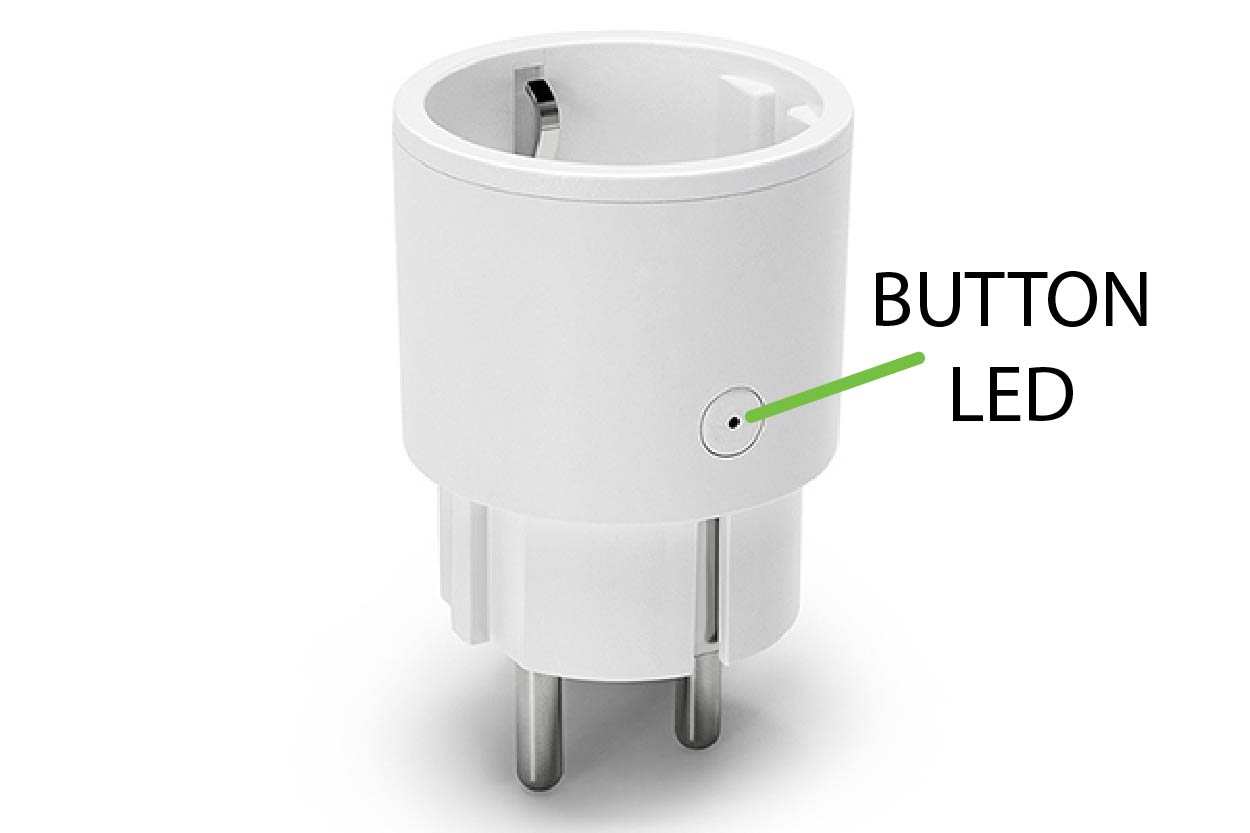

The plug features a single button with a blue LED light.
| Specifications | |
|---|---|
| Input voltage | 100-240V |
| Max power | 2500W |
| Frequency | 50-60Hz |
| Wifi | 2.4GHz |
| Size | Ø45mm x 73mm |
Quick setup
Plug In: Insert the Zatobox Plug into a powered socket.
Power Up: Once powered, the LED should start flashing.
Device Addition: Use the app to add the device (Add device). By default, the Zatobox Plug includes:
Sensors for energy monitoring.
An actuator for switching.
Home Screen Widget: A switch widget will be added to the home screen for controlling the plug.
LED State
| Device Status | LED State |
|---|---|
| Pairing mode | Dimming on/off |
| Relay closed | Continous on |
| Relay open | Dimly flashing (3s) |
| Error | Flashing fast (1s) |
Troubleshooting
Reset
Press and hold the button for 10 seconds. If successful, the LED will blink in pairing mode.
