Huawei SUN2000

Instruction to connect a huawei sun2000 inverter to the Zato box system.

  • Huawei SUN2000 l1 (with or withour battery)
  • Huawei SUN2000 m1 (with or withour battery)

Prerequisite

  • Zato box one
  • Generic RJ45 cable
  • USB-A to USB-C cable

Step 1 - Hardware connection​

Connect RS485A1 and RS485B1 pins of the inverter to the modbus A en B pins of zatobox one.

See pictures below with the pinout of the sun2000 L1 single phase inverter.

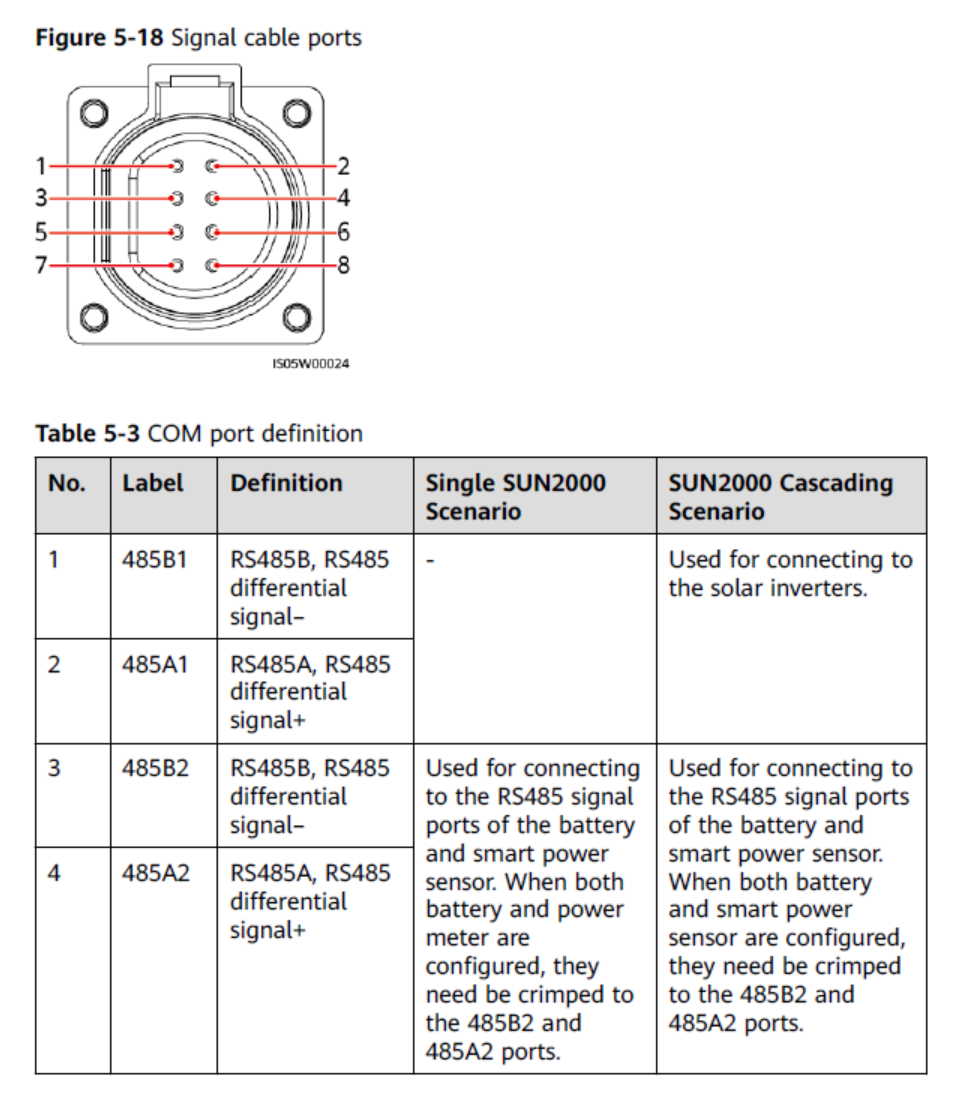

Huawei sun2000 L1 pinout

Below picture of the pinout for the sun2000 M1 three phase inverter.

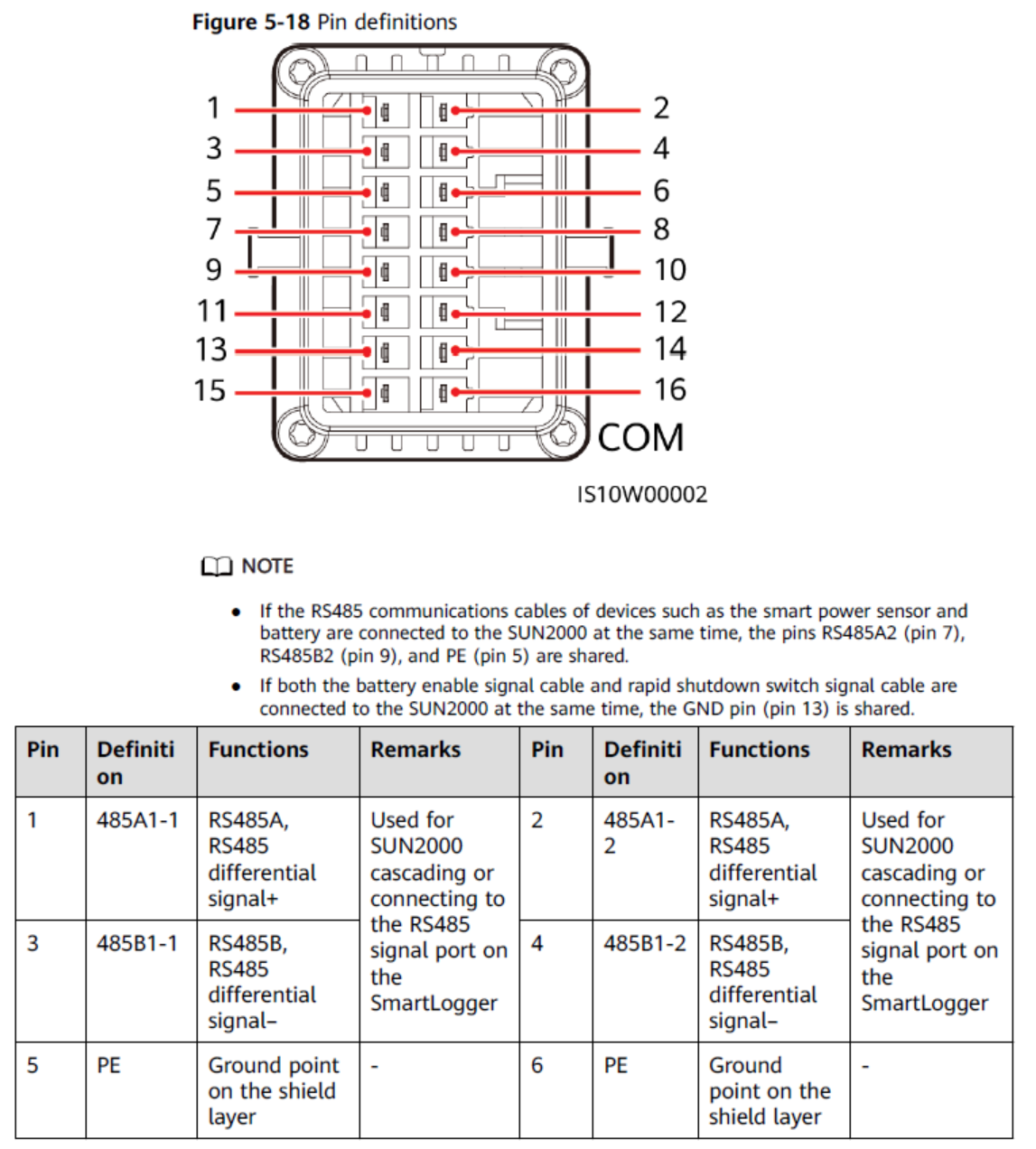

Huawei sun2000 M1 pinout

***********Picture connecting usb A to zatobox

Step 2 - Huawei inverter settings​

The Slave ID should be identical to the Com address set in the RS485_1 settings.

***************picture of screenshot huawei app

Step 3 - Add to zatobox​

Go to the device tab and push the plus button to add an extra device. Choose Huawei sun2000 from the list. If you have a battery attached you can choose the battery variant.

More information how to add 3rd party devices with the APP link.

*********** picture of connection settings

Step 4 - Trouble shooting​

  • Check if the inverter modbus settings are correct.
  • Check if the inverter is powered on. At night the power can be removed when only pv is connected.
  • Check if the zatobox device is powered on and connected to the wifi.
